IC Replacement Rework Station

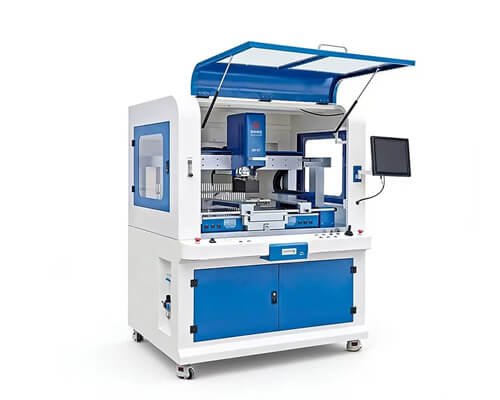

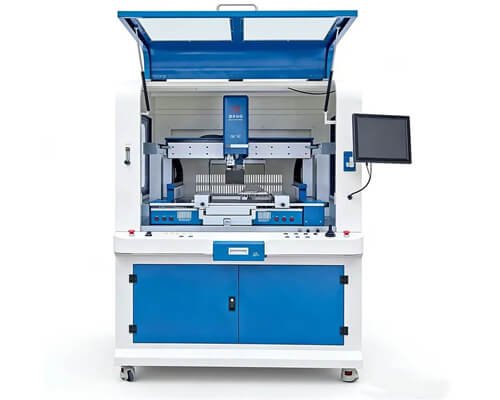

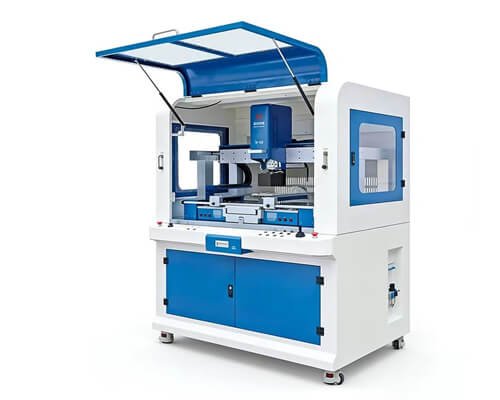

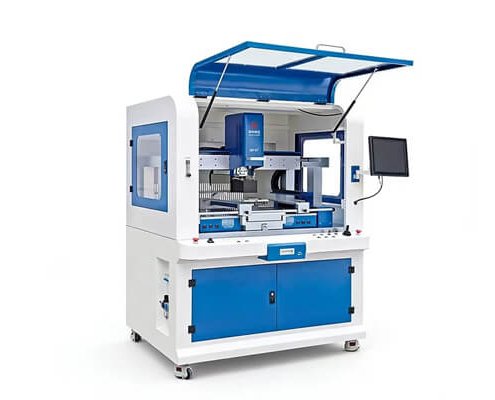

The Dinghua DH-A7 large-scale reflective optical BGA rework station features a drawer-type frame screen, a CCD camera, and is capable of reworking large-sized PCB boards. It utilizes optical alignment for precise chip placement and assembly, resulting in a high rework success rate. Key Words:bga reflow machine,laptop repair machine,laptop bga machine

Key Featuers

Precision IC Placement
Accurate Chip Rework
Controlled Heat Delivery
Safe PCB Handling
Reliable Repair Performance

Technical Data Products Parameters What can it do for you?

Previous Next

Engineered for precision, built for reliability. This industrial-strength Phone / Laptop Bga machine is designed to tackle the most demanding rework and prototyping tasks on complex PCBs, ensuring zero-defect outcomes in automotive, aerospace, and telecommunications manufacturing.

1.Unmatched Precision: This bga reflow machine features a high-resolution optical alignment system and micro-precision XYZ stage for flawless BGA, CSP, and QFN component placement.

2.Intelligent & Automated: laptop repair machine equipped with smart temperature profiling and closed-loop heat control, eliminating human error and ensuring consistent, repeatable results.

3.Robust for Demanding Environments: Built with industrial-grade components to deliver 24/7 performance reliability on high-volume production lines.

4.Versatile & Future-Proof: Easily handles a wide range of component sizes and board types, adapting to your evolving production needs.

Products Details

Operation Buttons

The operation buttons are clear and easy to understand, with a humanized arrangement, making the operation more convenient and efficient — laptop bga machine

Temperature Measurement Interface

Equipped with 5 temperature measurement interfaces, it allows for convenient temperature detection at any time, making temperature control more accurate and reliable — laptop repair machine

Upper Air Adjustment

10-speed stepless air adjustment, making repair work efficient and fast with excellent quality —-bga reflow machine

Lower Air Adjustment

Adjust different air volumes according to the chip size and PCB thickness, making repair work faster and more efficient

What can it do for you?

1.Eliminate Costly PCB Scrap: Salvage expensive boards by accurately replacing failed BGA components instead of discarding the entire assembly.

2.Ensure Production Line Continuity: Minimize downtime by performing urgent on-site repairs and maintenance, keeping your line running smoothly.

3.Uphold Highest Quality Standards: Meet stringent industry reliability requirements (such as in automotive ISO/TS 16949) with consistent, process-controlled rework.
