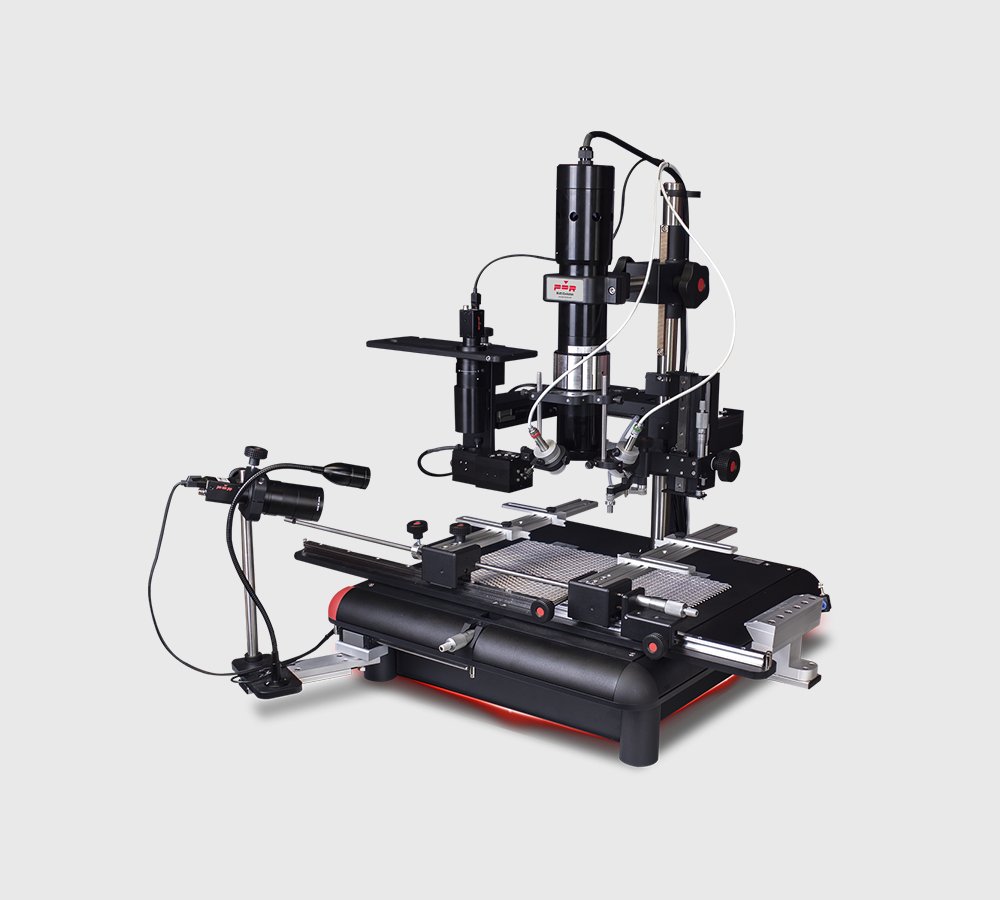

PDR-IR-E3-PRO

Small System, Big Precision

PDR-IR-E3-PRO

Simple Rework Station for all BGA/SMT Components

The IR-E3 Pro is a high-performance manual rework system designed for large PCBs and high thermal mass components. Combining focused infrared heating with increased preheating capacity, advanced sensing, and precision alignment, it delivers maximum control and repeatability for demanding rework applications.

Download PDF

Technical Data Key Advantages

Previous Next

Max PCB Size : 24×24” / 620x620mm
Max Component Size : 3.3×3.3” / 85x85mm
Min Component Size : 01005
Component Removal : Manual Pick-Up System
Component Placement : Split Beam Prism Alignment / x50 Magnification
Placement Accuracy : Up to 10um
Top Heater Power : 150W Focused Infrared up to Ø70mm Spot
PCB Preheater Power : 2800W Medium-Wave IR (3 Zones)
PCB Preheater Heating Area Size : 14.1×9.4” / 360x240mm
Component Temperature Sensing : Non-Contact IR Sensor
PCB Temperature Sensing : Non-Contact IR Sensor
Number of TC Channels : 4

Focused Infrared & Large Component Head

Visible, targeted focused IR heating directly to the component
No damage to surrounding components
Precise and adjustable energy for safe rework
Large component head for components between 55mm and 85mm

PCB Preheater

Protects components and PCBs from thermal shock
Fast, even zonal PCB heating
Reduces thermal gradients, warping, and board stress

Sensors

Non-contact infrared sensor for component temperature measurement
Non-contact infrared sensor for accurate PCB temperature monitoring
Enables independent control of component and PCB temperatures

ThermoActive Software

Simple, intuitive interface for process control
Automated temperature profiling and monitoring
Ensures consistent, repeatable rework performance

Alignment System

Manual optical alignment system
Accurate component positioning
Designed for reliable, repeatable placement
