PDR IR-E1

Simple. Precise. Reliable.

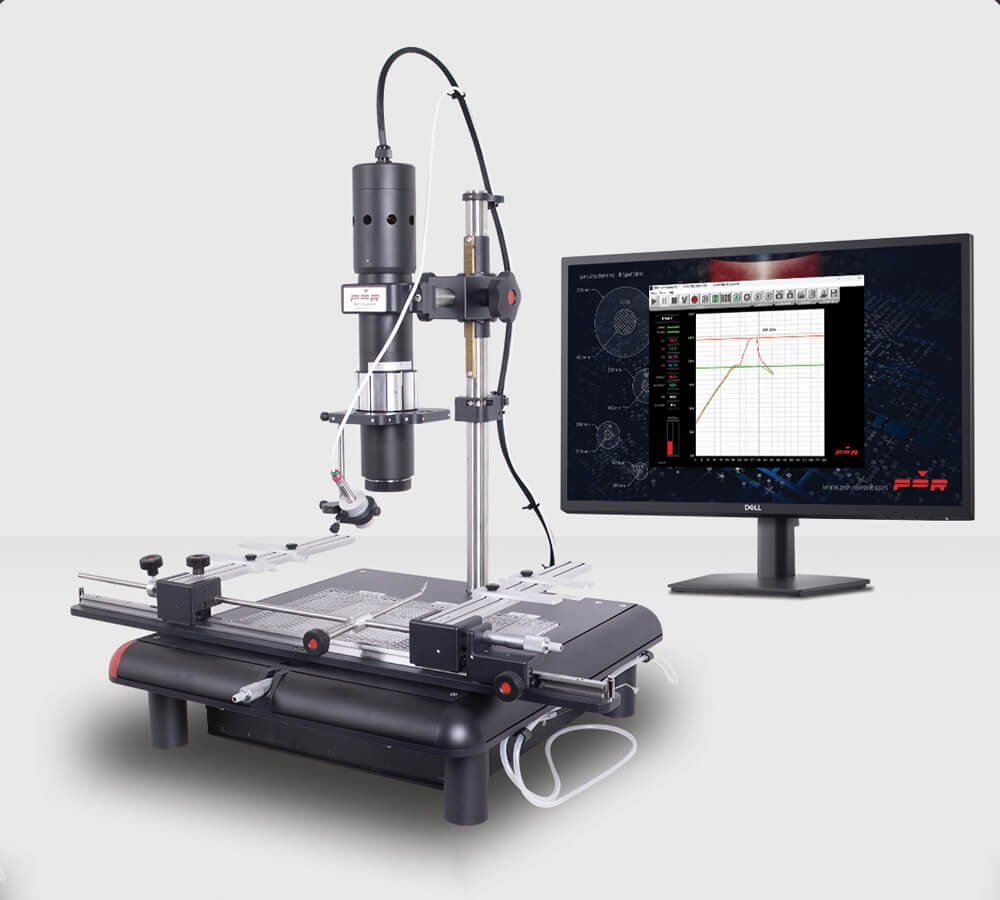

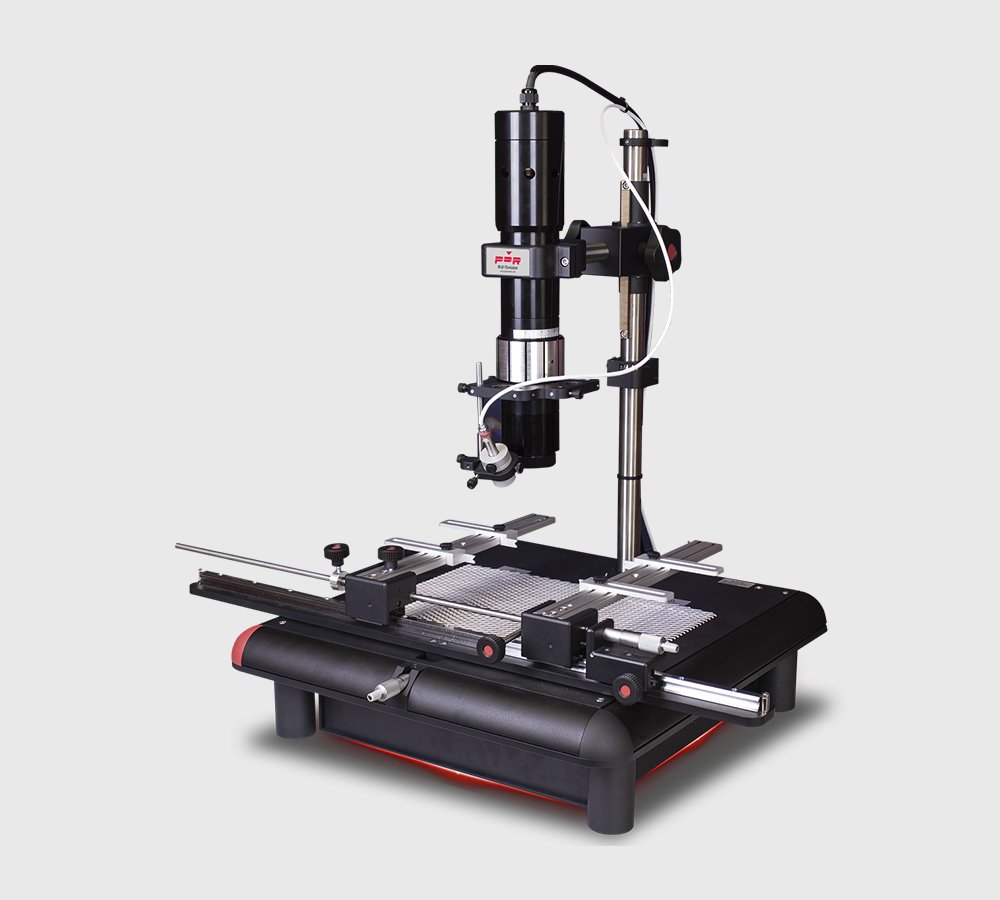

PDR IR-E1

Entry-Level SMD/BGA Rework Station

The IR-E1 is a compact, precision-focused BGA rework system designed for reliable, cost-effective rework of small to medium PCB assemblies. Built around controlled infrared heating and manual placement, it delivers consistent results for everyday rework applications without unnecessary complexity.

Advanced Focused IR component heating
Quartz IR PCB preheating with up to 3 zones
18”/450mm PCB Capacity
Precision PCB handling
Non-Contact Component Temperature Sensing
Wire TC PCB Temperature Sensing
Handheld Pickup Tool
Advanced Automatic Thermal Process Control

Download PDF

Technical Data Key Advantages Applications Accessories FAQ Video

Previous Next

MaxPCBSize : 12×18”/300x450mm
MaxComponentSize : 2.1×2.1”/55x55mm
MinComponentSize : 01005
ComponentRemoval : ManualPick-UpSystem
ComponentPlacement : SplitBeamPrismAlignment/x50Magnification
PlacementAccuracy : Upto10um
TopHeaterPower : 150WFocusedInfrareduptoØ70mmSpot
PCBPreheaterPower : 2800WMedium-WaveIR(3Zones)
PCBPreheaterHeatingAreaSize : 14.1×9.4”/360x240mm
ComponentTemperatureSensing : Non-ContactIRSensor
PCBTemperatureSensing : ContactProbe
NumberofTCChannels : 4

Focused Infrared Heating

Visible, targeted focused IR heating directly to the component
No damage to surrounding components
Precise and adjustable energy for safe rework

Sensors

Non-contact infrared sensor for component temperature measurement
Contact probe for accurate PCB temperature monitoring
Enables independent control of component and PCB temperatures

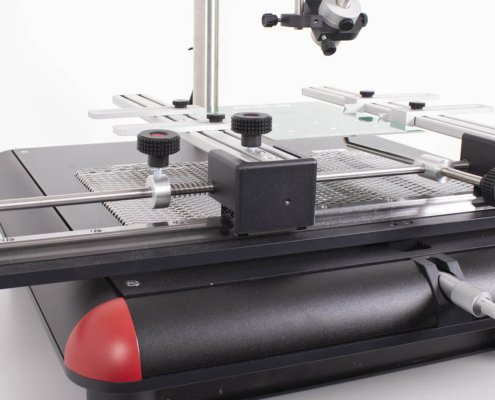

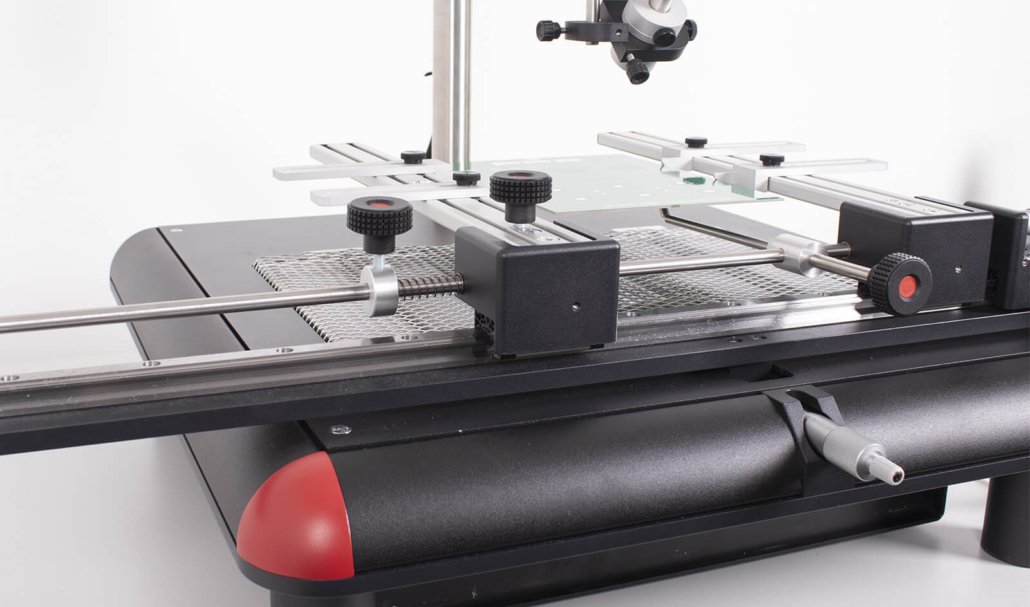

PCB Preheater

Protects components and PCBs from thermal shock
Fast, even zonal PCB heating
Reduces thermal gradients, warping, and board stress

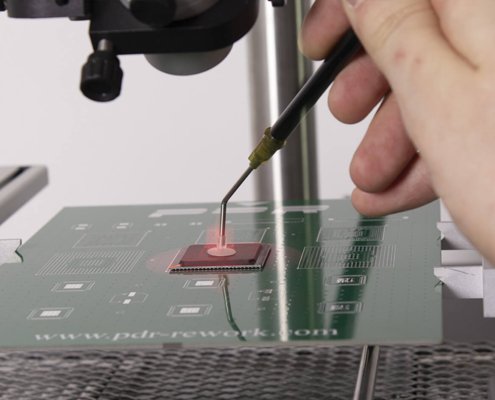

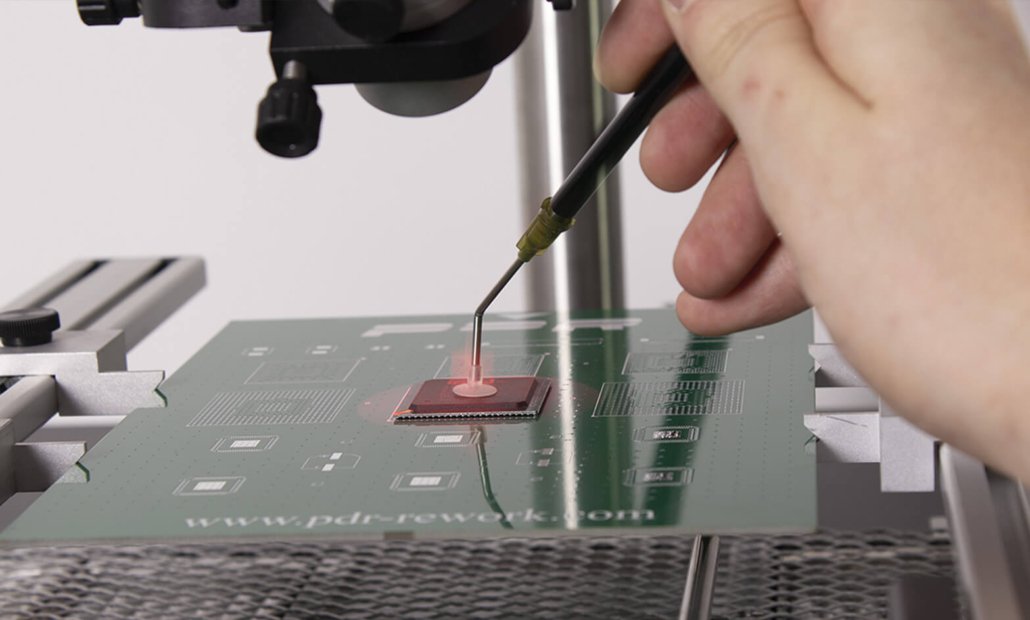

Handheld Vacuum Tool

Manual component placement and removal
Smooth, controlled handling of components
Provides operator flexibility and precision

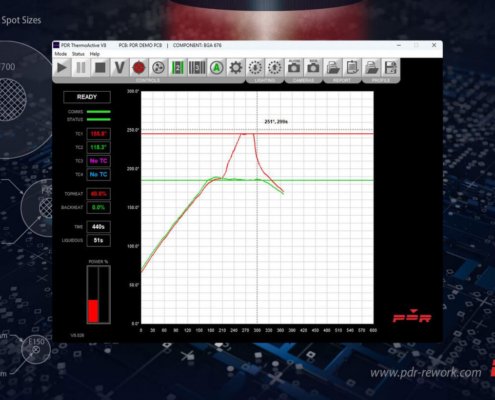

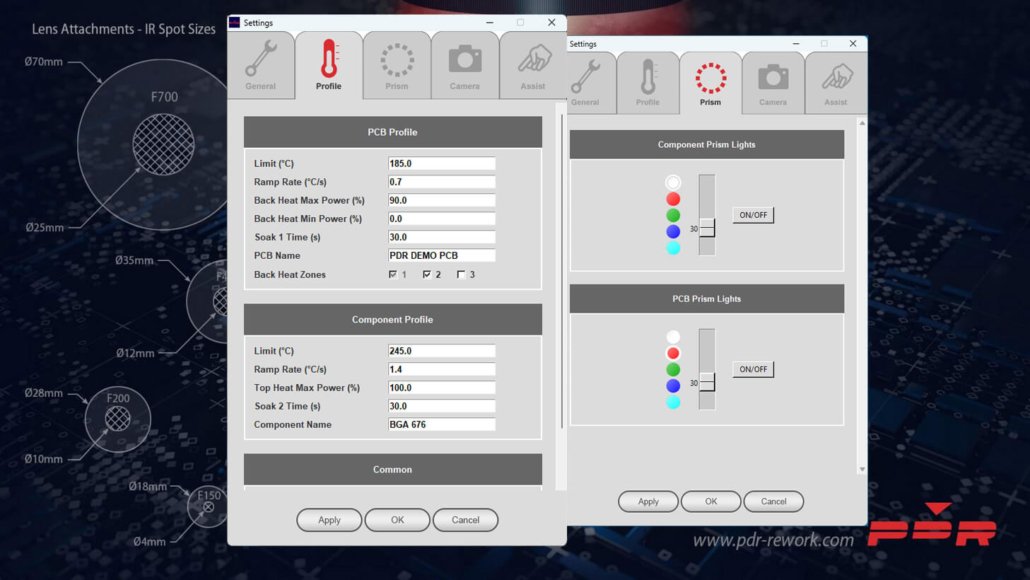

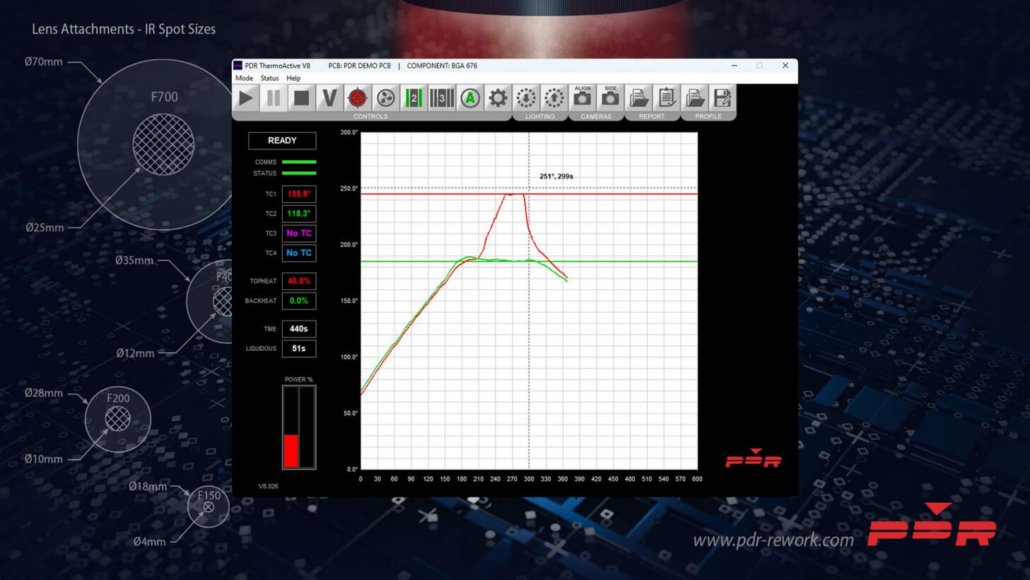

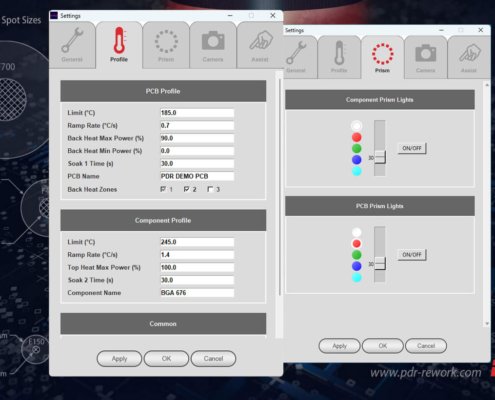

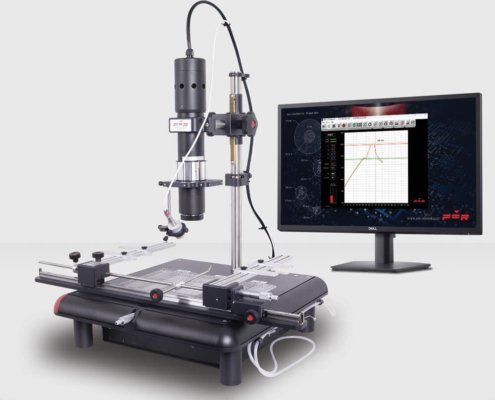

ThermoActive Software

Simple, intuitive interface for process control
Automated temperature profiling and monitoring
Ensures consistent, repeatable rework performance

Desoldering, placement and soldering of all types of surface-mounted devices (SMD), BGA, QFN, LED, CSP, 0201, 01005

PDR Lens Attachments

AC-F150	F150 (Ø4 – 18mm spot size)
AC-F200	F200 (Ø10 – 28mm spot size)
AC-F400	F400 (Ø12 – 35mm spot size)

Spares Kits

AC02009	Consumables kit (lamp+socket, gel flux, roll 25mm black tape, vac cup, springs, O rings)
AC02008	Consumables kit (lamp+socket, gel flux x 2, roll 25mm black tape, vac cup, springs, O rings, Lens No1, Cold Mirror)

PDR Reball Kit

PDRRB01	PDR BGA Reball Set (BGA foil & frame, paste foil & frame, hi-temp esd nest, squeegee blade)
PDRB02	PDR BGA Reball Additional Component Set

Other

SP05029	Laser Alignment Tool
SC020	Controller & Sensor Calibration Check Kit
SP05016	PCB IR Sensor – CS Type (Ø 7-12mm spotsize)
SP05017	PCB Sensor Contact Probe

Why is it called Focused Infrared and how is it different from normal IR?

PDR uses Focused Infrared, meaning the IR energy is precisely concentrated onto a defined spot. Unlike normal IR that spreads heat over a wide area, focused IR delivers controlled, uniform, and localized heating, ideal for sensitive SMD/BGA components.

Is PDR’s IR Technology Safe? Do we need eye protection?

Yes, PDR’s IR technology is completely safe. It uses medium-wave IR, which is non-harmful when used correctly. No special eye protection is required, as the system is engineered for operator safety and low-risk operation.

Will the IR beam burn my fingers?

No. Focused IR heats the component and PCB surface, not the surrounding air. If you briefly place your hand near the beam, you will not be burned—but direct contact with heated components should always be avoided.

How does PDR’s Focused IR work?

PDR’s Focused IR uses a precision-controlled IR lamp and optical system to concentrate heat exactly where required. Real-time temperature feedback ensures accurate, repeatable thermal profiles without overheating nearby components.
