PDR IR-E6

Precision Rework, Redefined

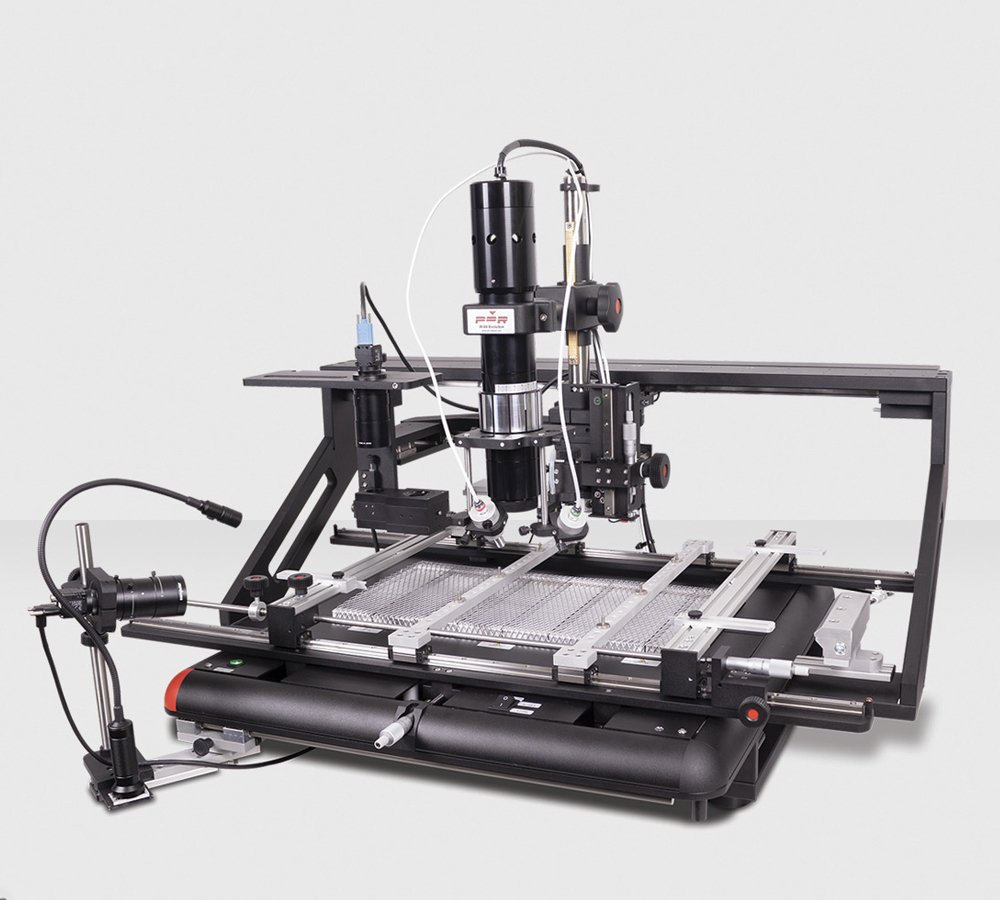

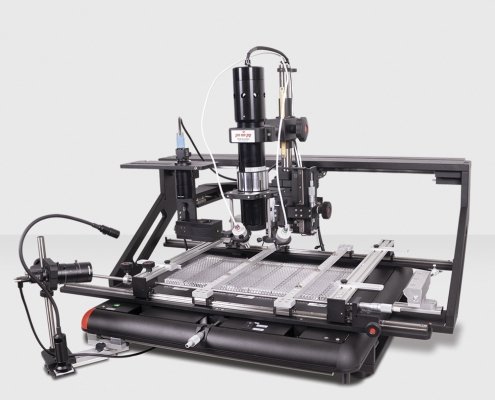

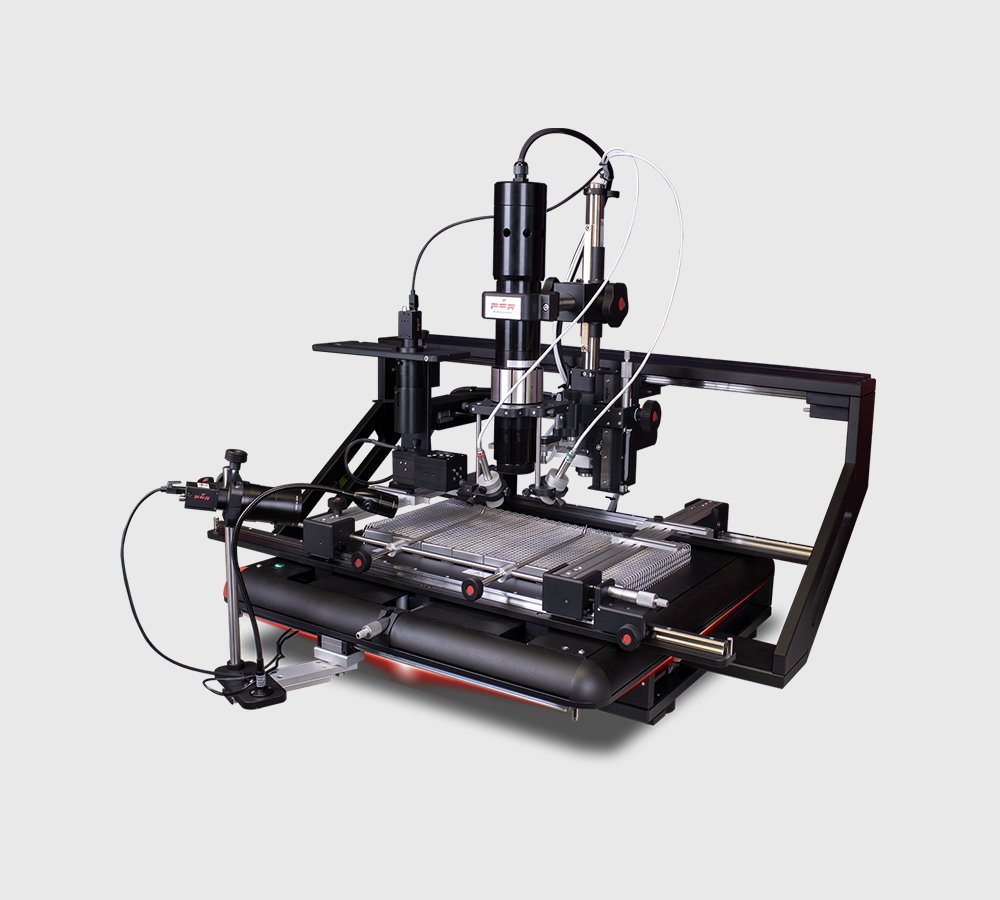

PDR IR-E6

BGA/SMT Rework Station for XL PCBs

The IR-E6 is a high-performance manual rework system engineered for large PCBs and high thermal mass applications. Combining focused infrared heating with high-capacity preheating, advanced sensing, and a precision gantry system, it delivers maximum thermal stability and process control for demanding rework environments.

Gantry Mounted Advanced Focused IR component heating
Large Quartz IR PCB preheating with 3 zones
24”/620mm PCB Capacity
Split Beam prism system for simultaneous PCB/component viewing
Precision Components Pick and Placement up to 10um

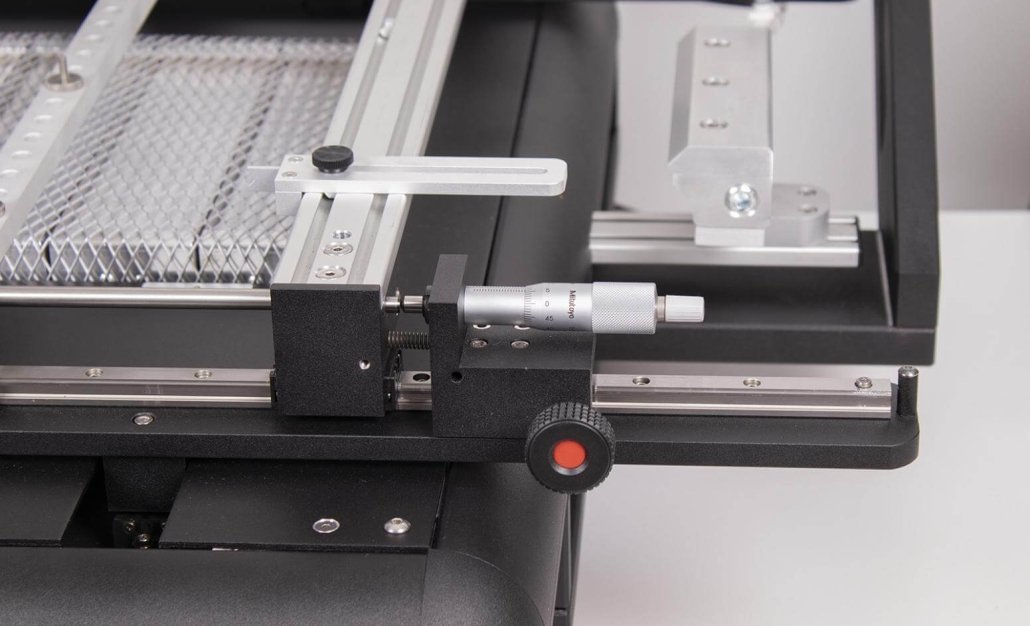

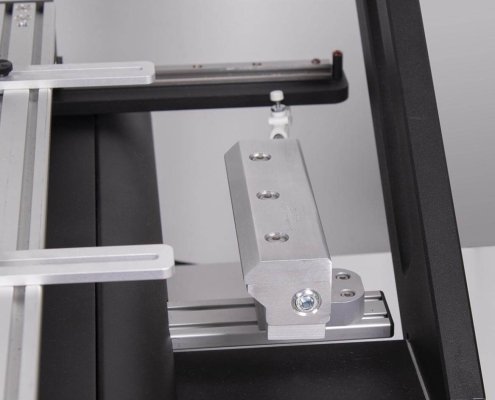

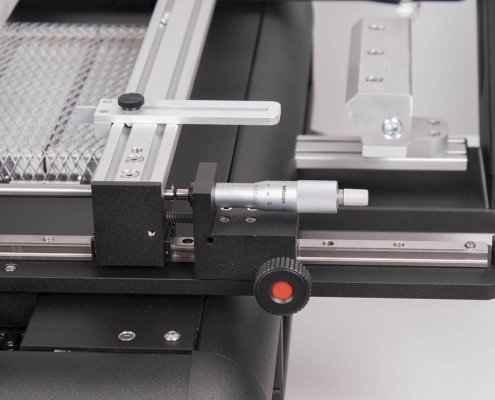

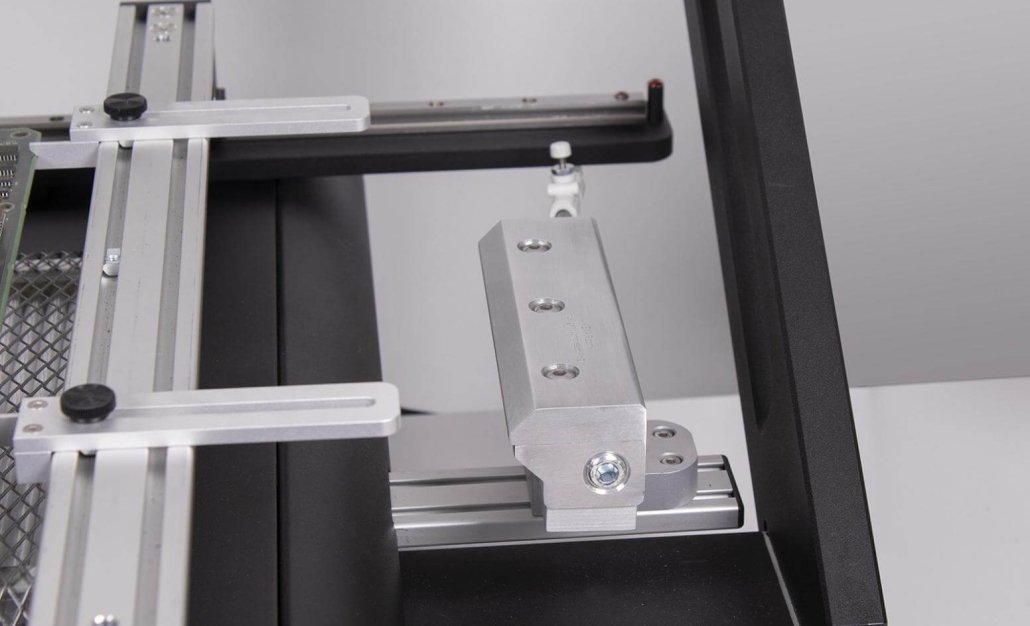

Precision PCB handling
Component Nest/Flux Application Facility
Closed Loop Non-Contact Temperature Sensing
Advanced Automatic Thermal Process Control
Reflow Process Observation Camera
PCB Forced Air Cooling

Download PDF

Technical Data Key Advantages Applications Accessories FAQ VIdeo

Previous Next

Max PCB Size : 18×24” / 460x620mm
Max Component Size : 2.1×2.1” / 55x55mm
Min Component Size : 01005
Component Removal : Manual Pick-Up System
Component Placement : Split Beam Prism Alignment / x50 Magnification
Placement Accuracy : Up to 10um
Top Heater Power : 150W Focused IR up to Ø70mm Spot on Gantry System
PCB Preheater Power : 3200W Medium-Wave IR (3 Zones)
PCB Preheater Heating Area Size : 19.6×9.4” / 500x240mm
Component Temperature Sensing : Non-Contact IR Sensor
PCB Temperature Sensing : Non-Contact IR Sensor
Number of TC Channels : 4

Focused Infrared Heating

Visible, targeted focused IR heating directly to the component
No damage to surrounding components
Precise and adjustable energy for safe rework

PCB Preheater

Protects components and PCBs from thermal shock
Fast, even zonal PCB heating
Reduces thermal gradients, warping, and board stress

Gantry (Edge-to-Edge Rework)

Full XY gantry system for complete board coverage
Enables true edge-to-edge rework capability
Smooth, controlled movement across large PCBs
Ideal for large-format and high-value assemblies

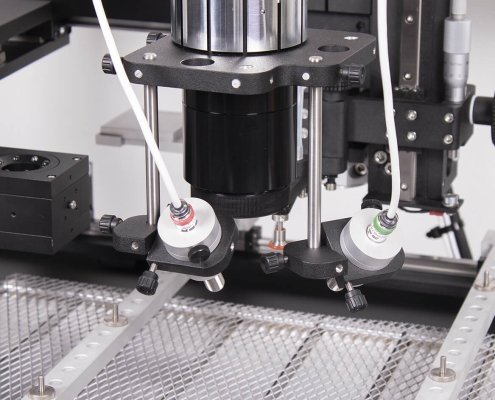

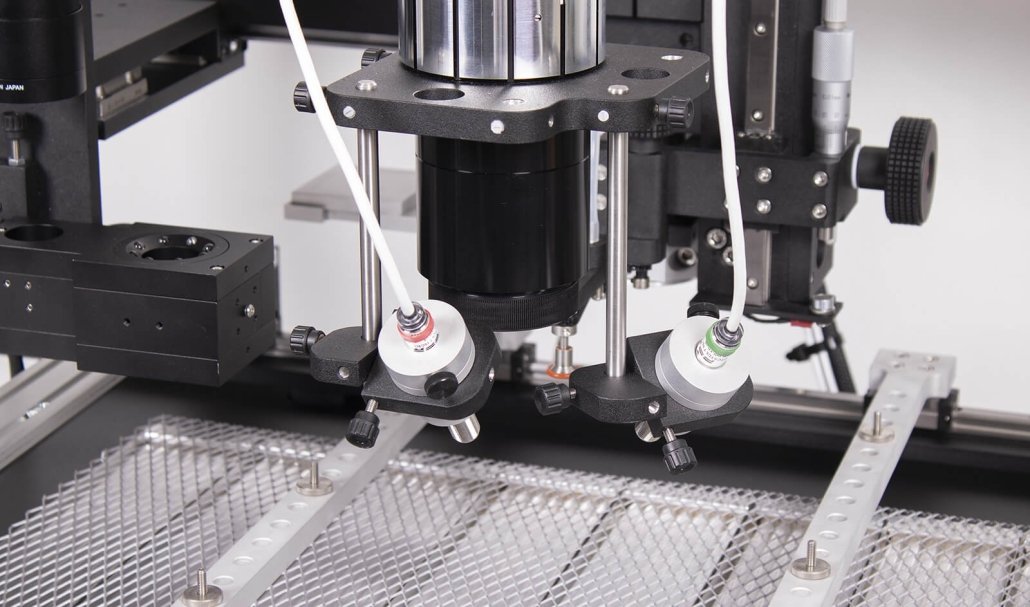

Sensors

Non-contact infrared sensor for component temperature measurement
Non-contact infrared sensor for accurate PCB temperature monitoring
Enables independent control of component and PCB temperatures

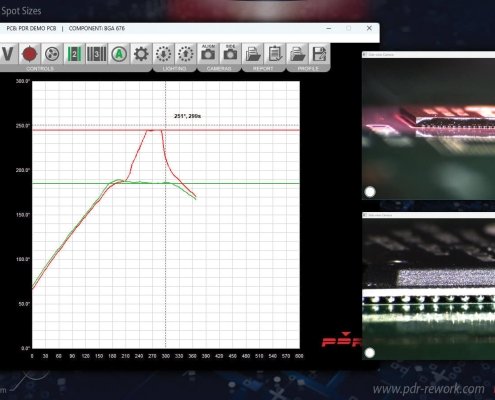

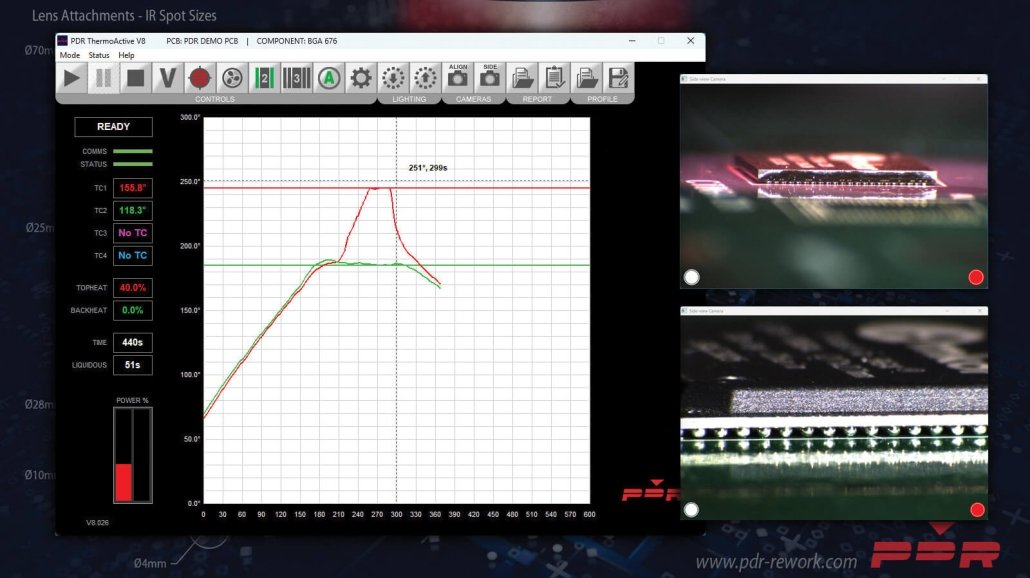

ThermoActive Software

Simple, intuitive interface for process control
Automated temperature profiling and monitoring
Ensures consistent, repeatable rework performance

Alignment System

Manual optical alignment system
Accurate component positioning
Designed for reliable, repeatable placement

Desoldering, placement, and soldering of all types of surface-mounted devices (SMD).
BGA, QFN, LED, CSP, 0201, 01005

PDR Lens Attachments

AC-F150	F150 (Ø4 – 18mm spot size)
AC-F400	F400 (Ø12 – 35mm spot size)

PDR Micro Component Kit

UGMC01

PDR Micro Component Kit (F150 lens attachment, low profile pickup head, SP03031:SP03030:SP03049 pick-up tips)

Spares Kits

AC02009	Consumables kit (lamp+socket, gel flux, roll 25mm black tape, vac cup, springs, O rings)
AC02008	Consumables kit (lamp+socket, gel flux x 2, roll 25mm black tape, vac cup, springs, O rings, Lens No1, Cold Mirror)

Solderpaste Print Part System

PDRPP01	Print Part System
PDRPP02	Print Part System Additional Stencil

PDR Reball Kit

PDRRB01	PDR BGA Reball Set (BGA foil & frame, paste foil & frame, hi-temp esd nest, squeegee blade)
PDRB02	PDR BGA Reball Additional Component Set

Other

SP05029	Laser Alignment Tool
SC020	Controller & Sensor Calibration Check Kit
SP05017	PCB Sensor Contact Probe

Why is it called Focused Infrared and how is it different from normal IR?

PDR uses Focused Infrared, meaning the IR energy is precisely concentrated onto a defined spot. Unlike normal IR that spreads heat over a wide area, focused IR delivers controlled, uniform, and localized heating, ideal for sensitive SMD/BGA components.

Is PDR’s IR Technology Safe? Do we need eye protection?

Yes, PDR’s IR technology is completely safe. It uses medium-wave IR, which is non-harmful when used correctly. No special eye protection is required, as the system is engineered for operator safety and low-risk operation.

Will the IR beam burn my fingers?

No. Focused IR heats the component and PCB surface, not the surrounding air. If you briefly place your hand near the beam, you will not be burned—but direct contact with heated components should always be avoided.

How does PDR’s Focused IR work?

PDR’s Focused IR uses a precision-controlled IR lamp and optical system to concentrate heat exactly where required. Real-time temperature feedback ensures accurate, repeatable thermal profiles without overheating nearby components.
