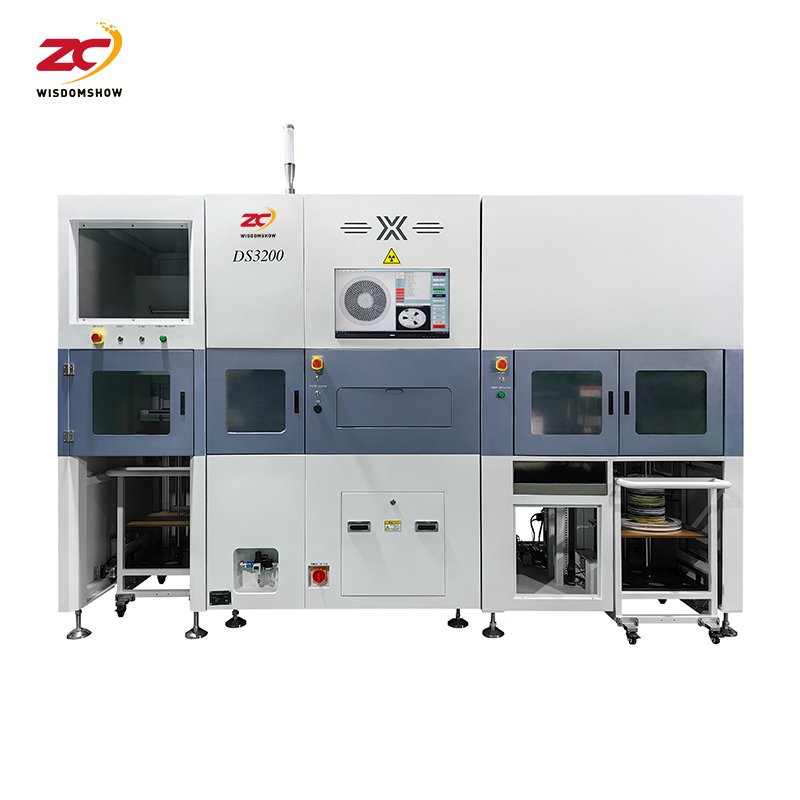

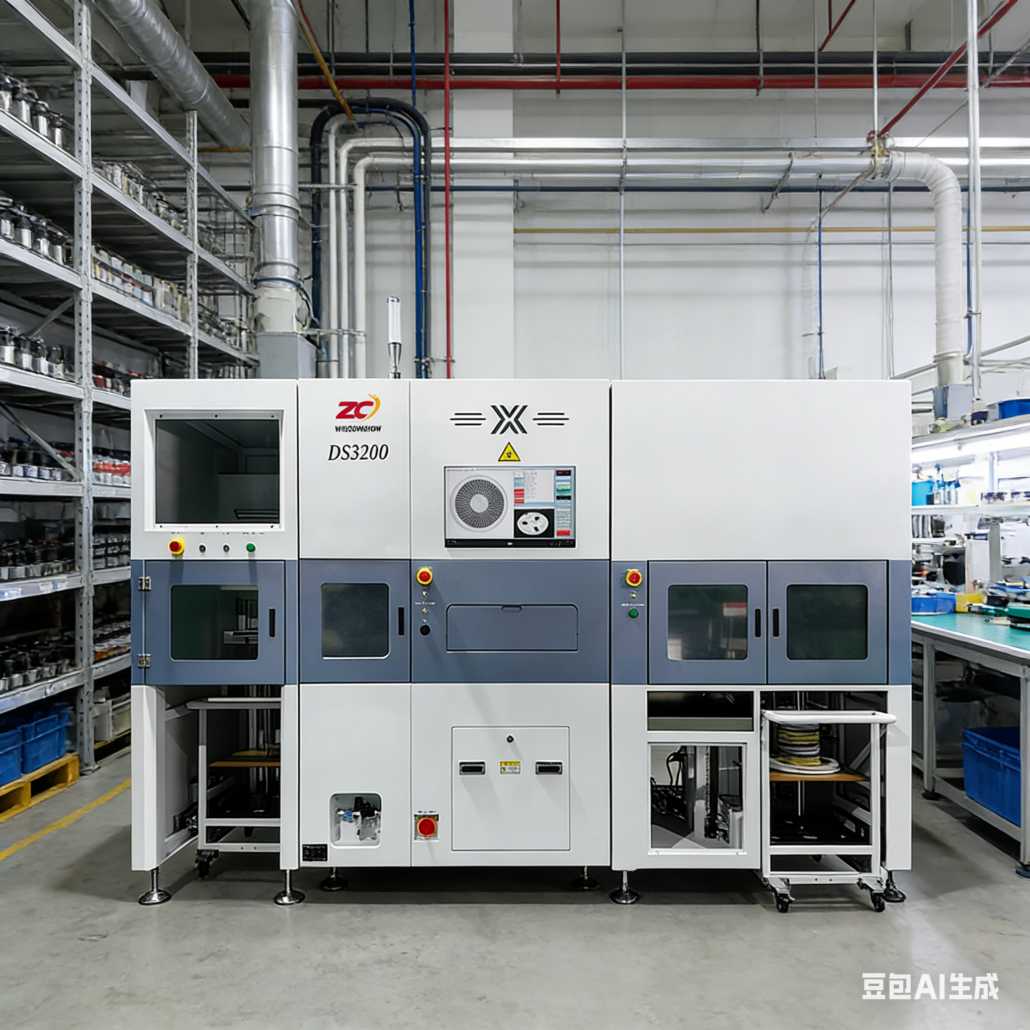

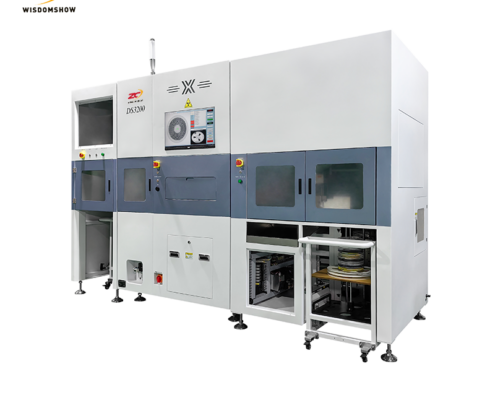

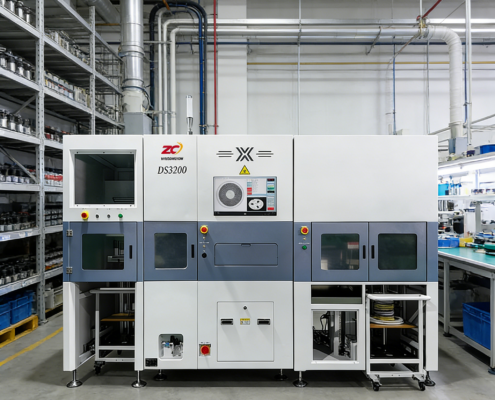

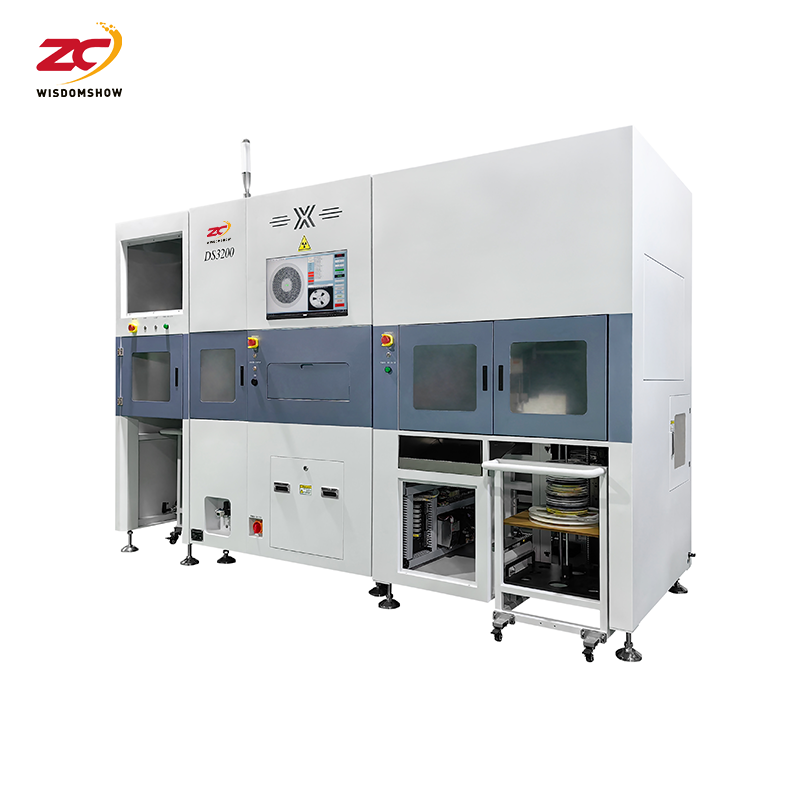

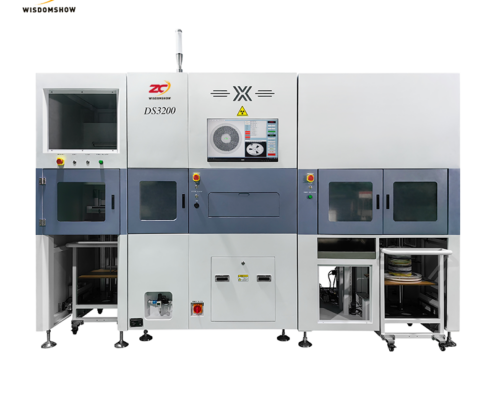

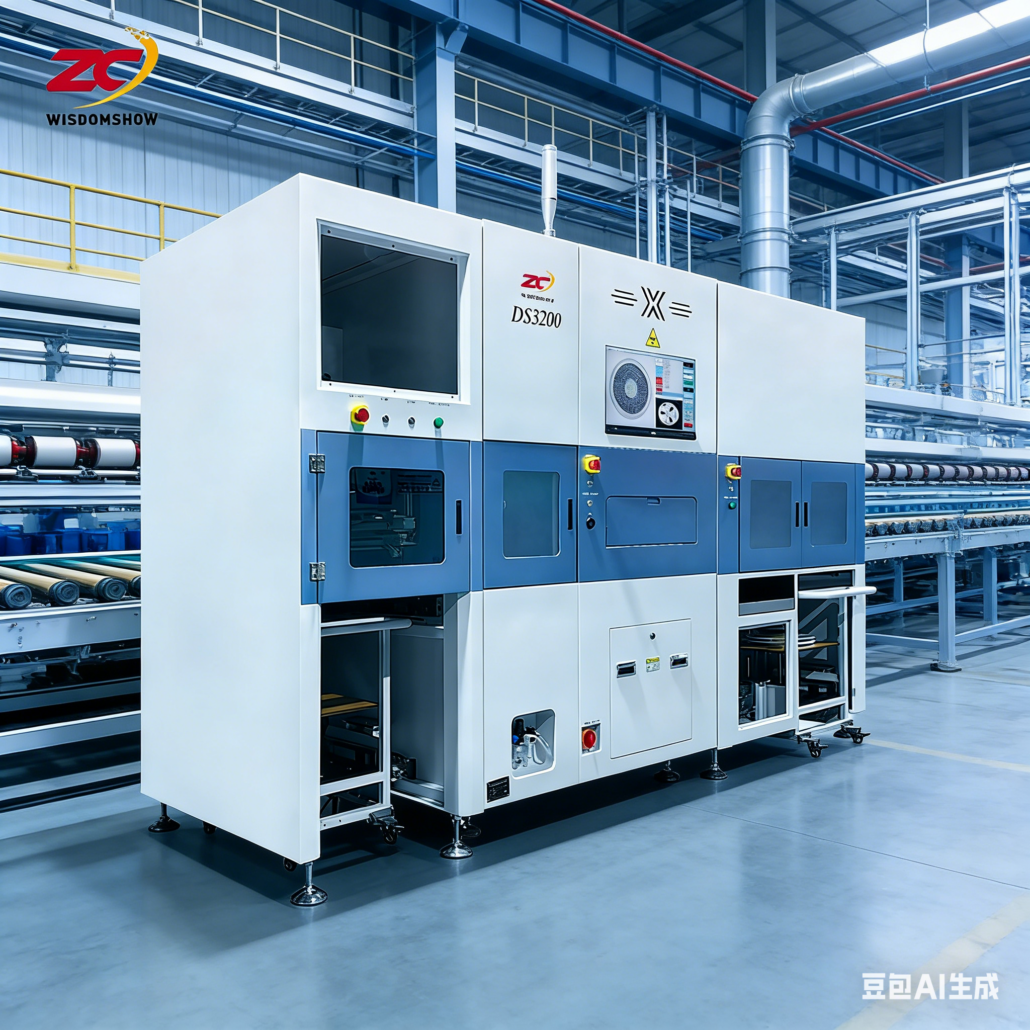

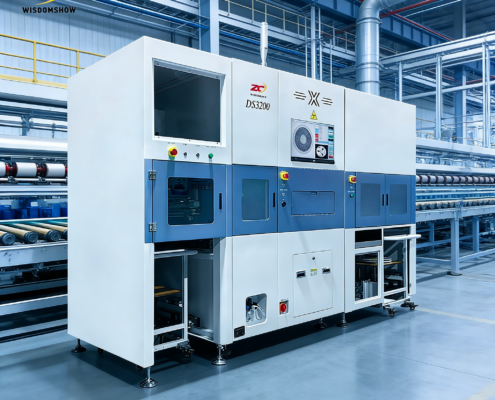

Electronic X-ray Online Counting Machine DS-3200 PLC Core Automatic SMD Parts Counter 1 Year Warranty Wisdomshow Brand

The DS-3200 Electronic X-Ray Online Counting Machine by Wisdomshow is a high-performance, fully automatic SMD parts counter equipped with a PLC core system and advanced X-ray technology to ensure fast, precise, and non-destructive reel counting. Designed for seamless online integration, it improves production efficiency, reduces manual errors, and provides reliable real-time inventory management, making it an ideal solution for modern electronics manufacturing.

Advanced X-ray technology ensures highly accurate SMD component counting
PLC-based system enables fully automatic and efficient operation
Designed for seamless integration into SMT production lines
Fast counting speed improves productivity and workflow efficiency
Non-destructive inspection keeps components safe during scanning
Stable performance with reliable results and 1-year warranty

Voltage	110–220 V	Power (X-ray Tube)	50–80 kV
Core Components	PLC	Machinery Test Report	Provided
Warranty	1 Year	Video Outgoing Inspection	Provided
Weight (kg)	2500 kg	Brand Name	Wisdomshow
Place of Origin	Guangdong, China	Product Name	DS-3200 X-ray Online Counting Machine
Tube Voltage	50–80 kV	Maximum Tray Size	17 Inches
Pixel Matrix	3072 × 3072 pixels	Image Size	430 × 430 mm
Detector Size	470 × 470 × 35 mm	Feeding Method	Cart-type Automatic Induction Feeding
Total Power	2400 W	Equipment Size	4500 × 1200 × 2118 mm

Model	DS-3200	X-ray Source	—
Tube Voltage	50–80 kV	Tube Current	100–800 μA
Cooling Method	Air-cooled	Radiation Safety	< 1 μSv/h
Detector Category	Amorphous Silicon	Pixel Matrix	3072 × 3072 pixels
Image Size	430 × 430 mm	Detector Size	470 × 470 × 35 mm
Load-bearing Platform	10 kg	Maximum Tray Size	17 inches
Minimum Tray Size	Unlimited	Maximum Tray Thickness	80 mm
Bar Code Recognition	Automatic	Feeding Method	Cart-type Automatic Induction Feeding
Labeling Method	CCD automatically recognizes tray label position, and robotic arm applies new label over the old one
Cutting Method	Automatically fed into feeder	Total Power	2400 W
Equipment Size	4500 × 1200 × 2118 mm	Equipment Weight	Approx. 2500 kg
Supply Voltage	220 V, 50–60 Hz
